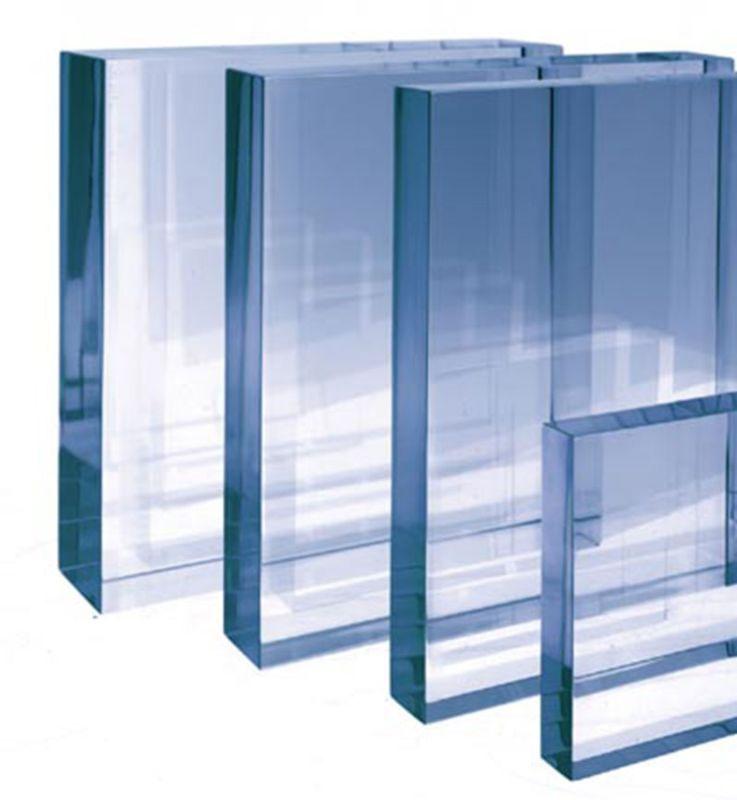

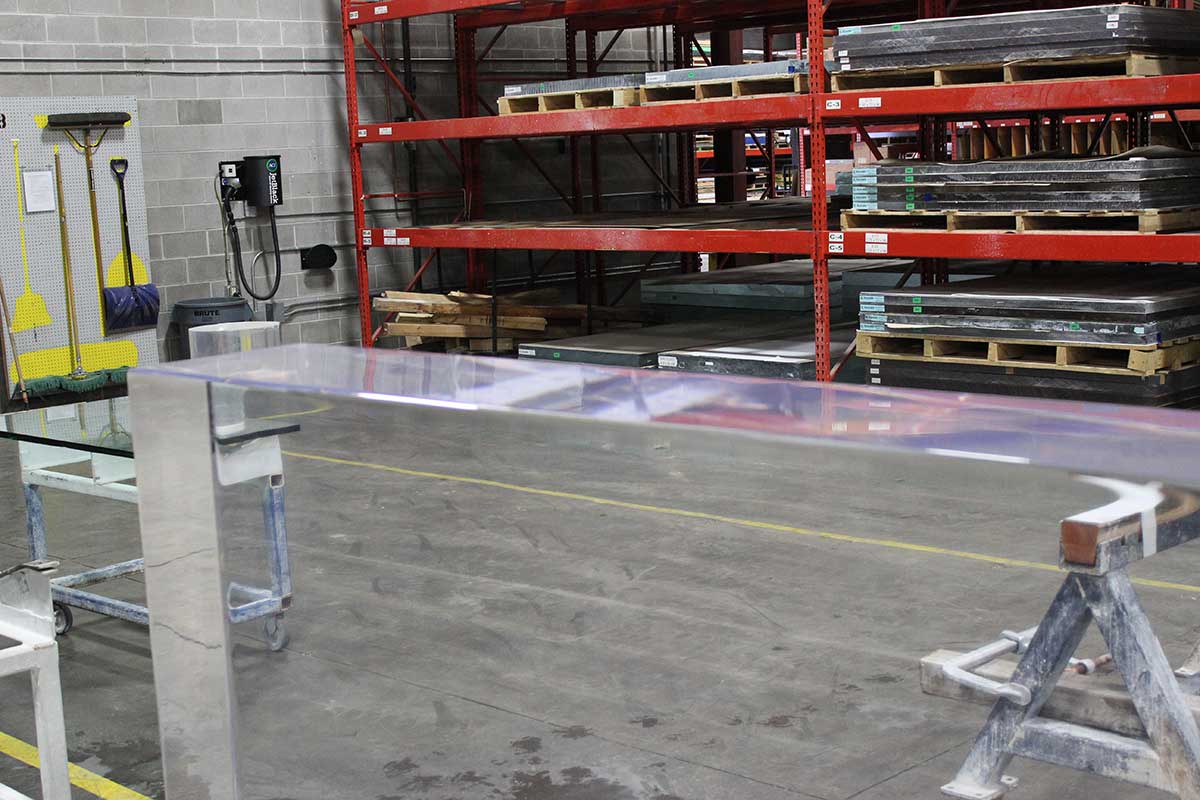

Thick Cast Sheet

Thick Cast Sheet

Applications

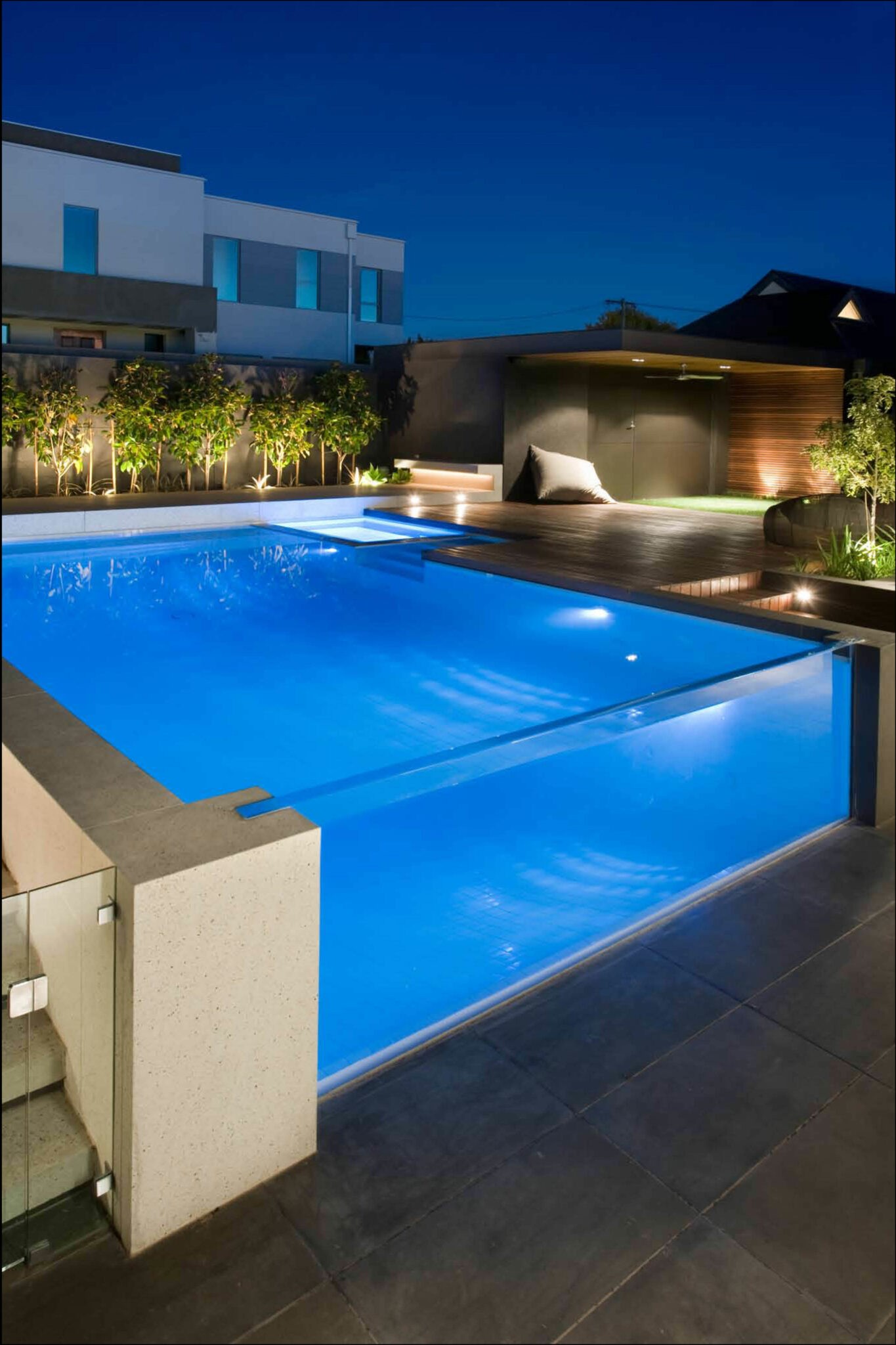

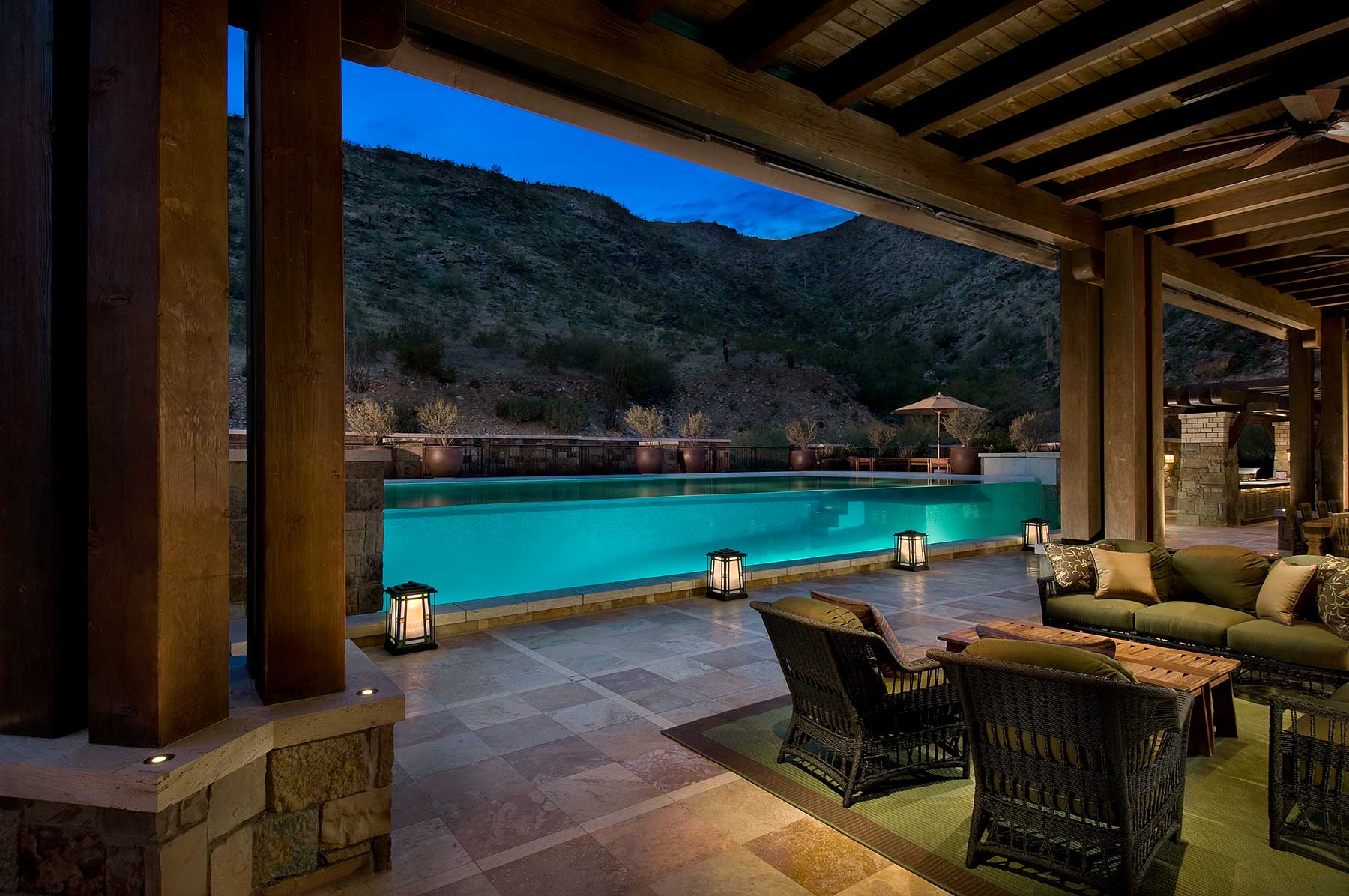

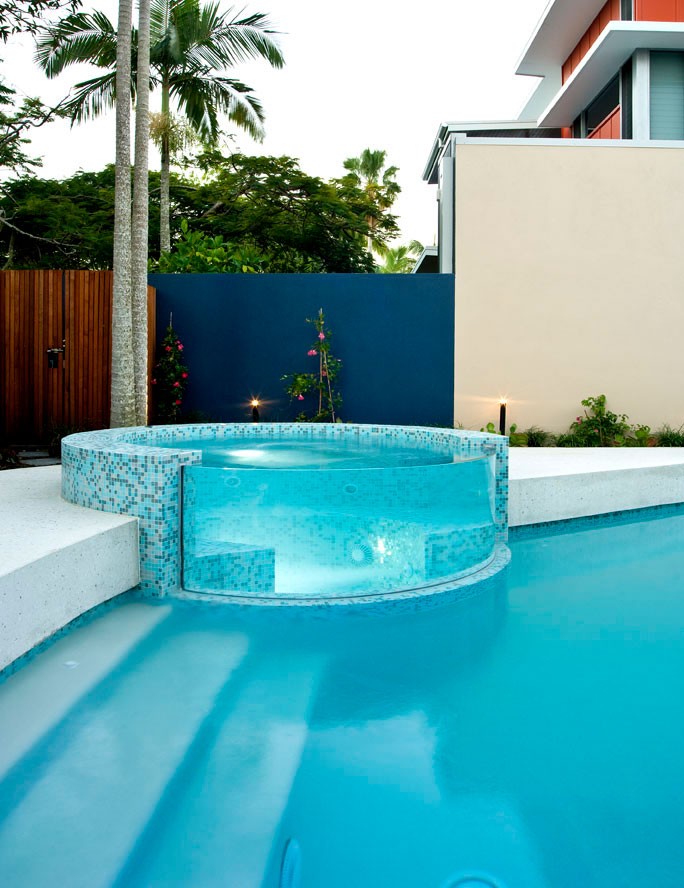

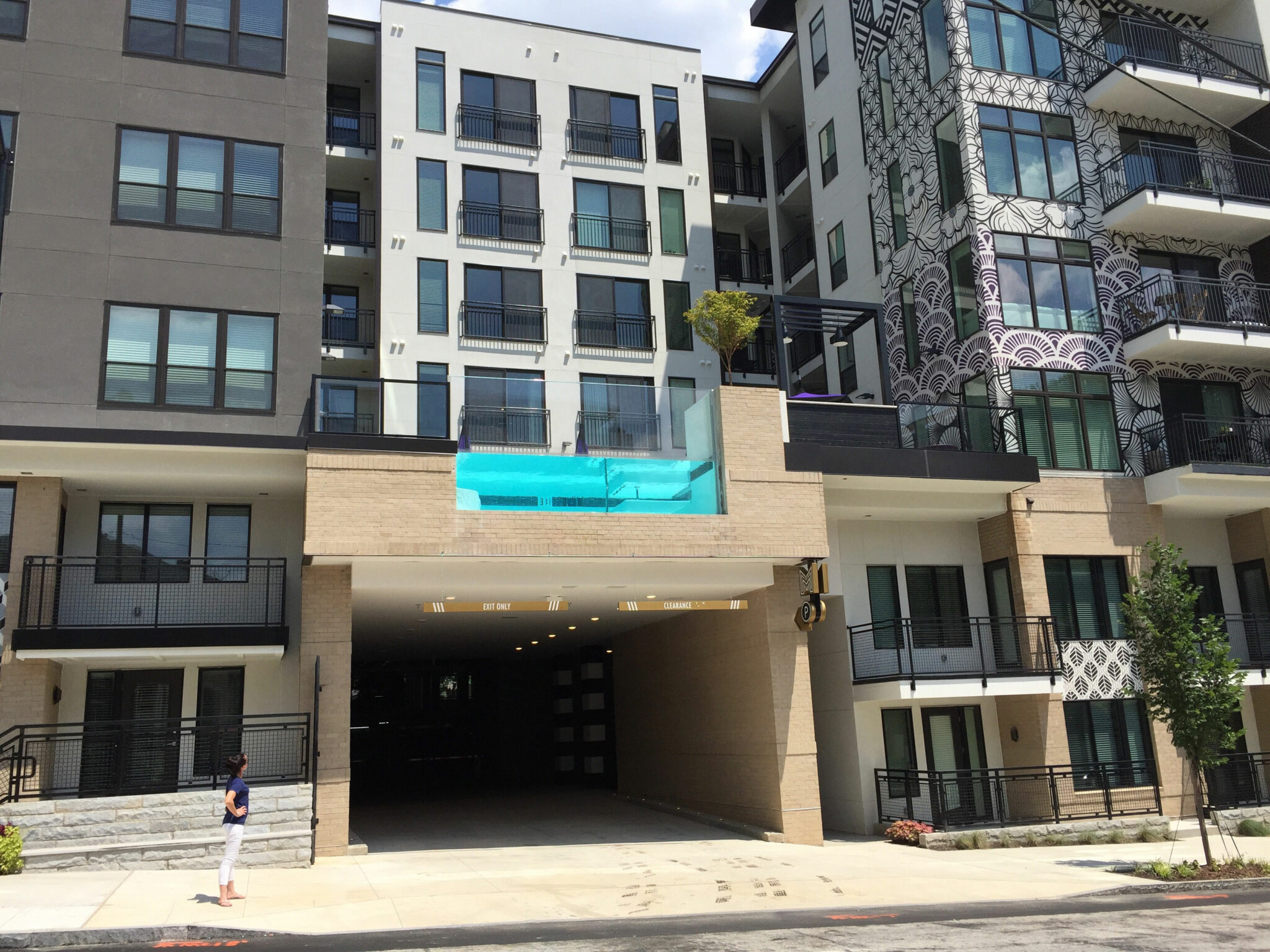

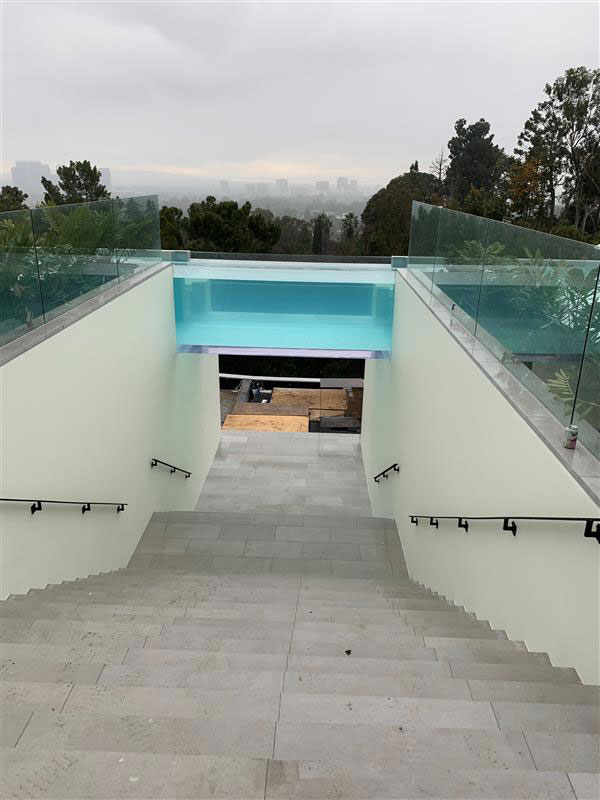

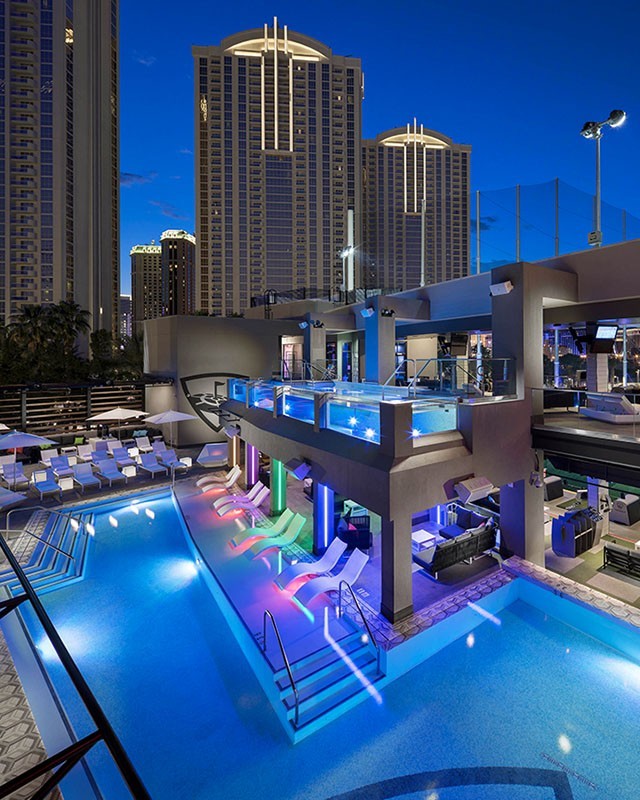

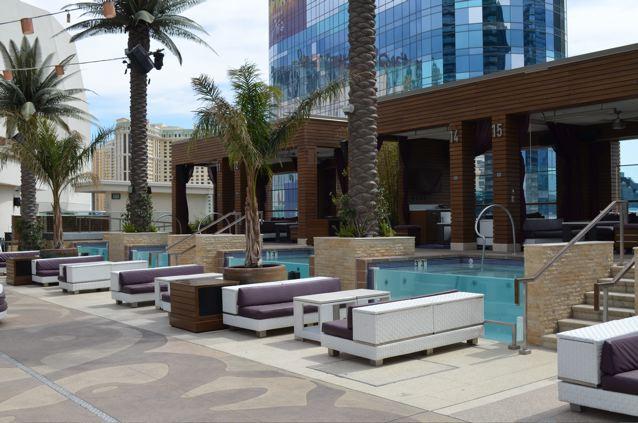

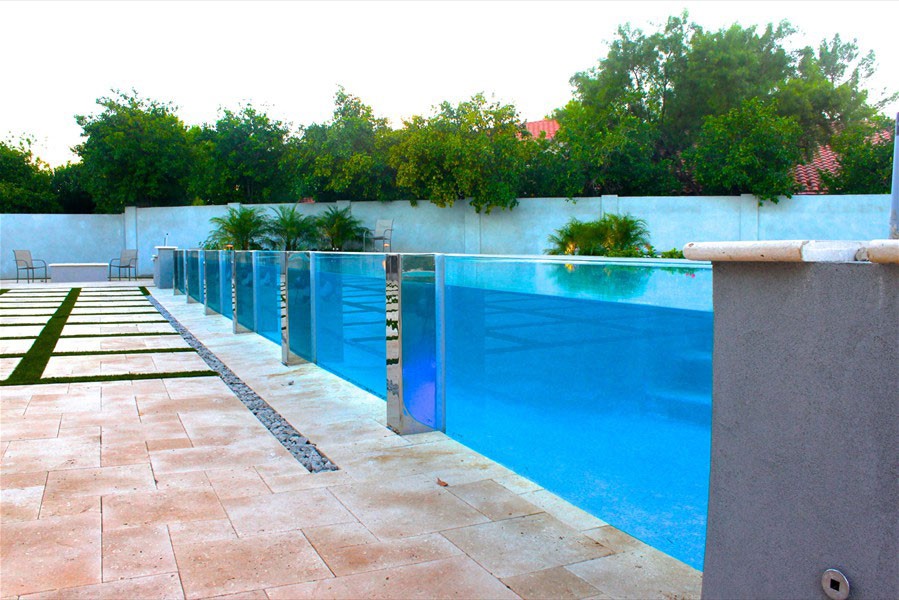

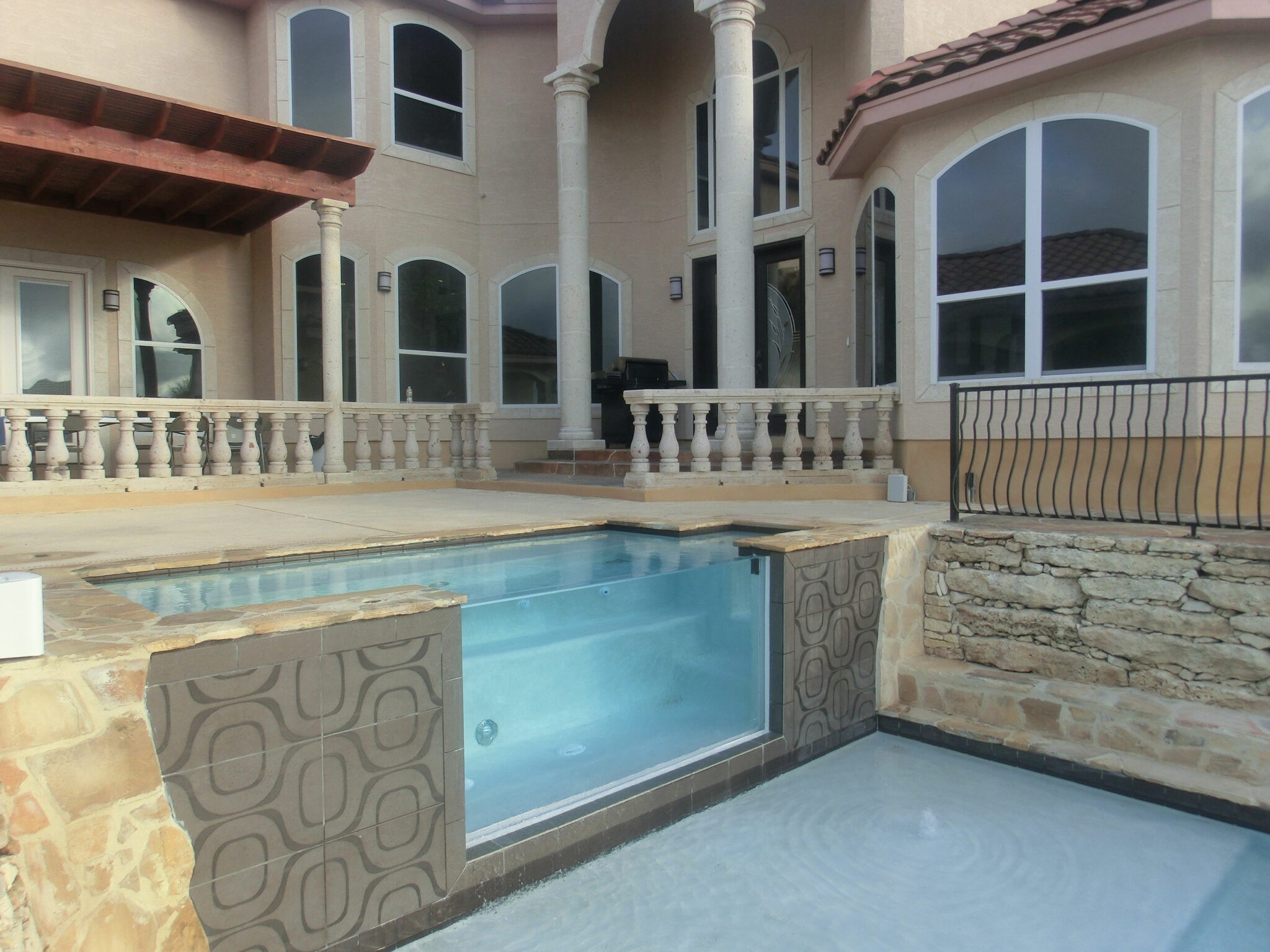

  • Pools

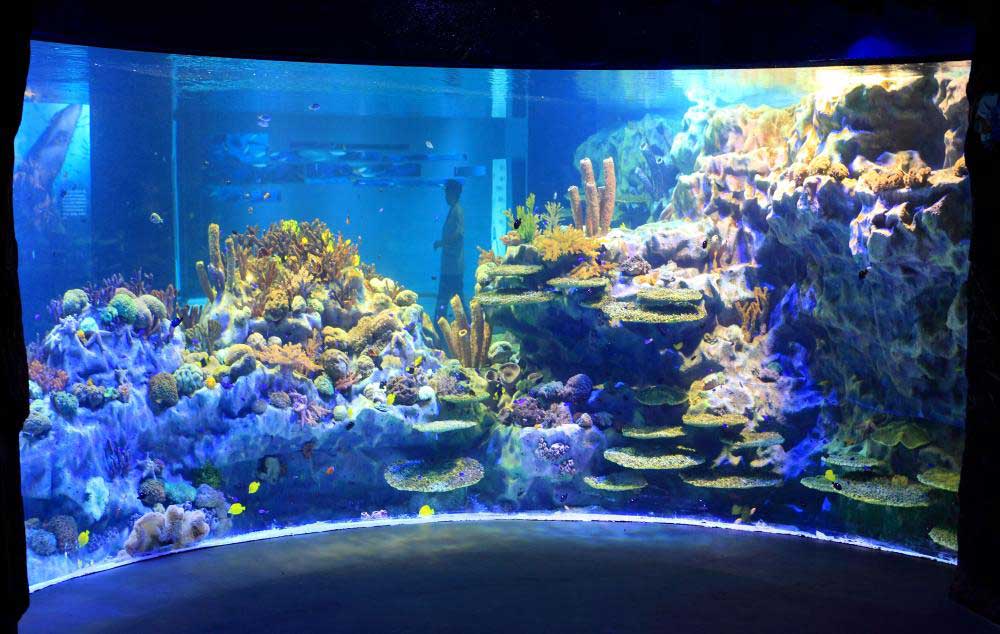

  • Aquariums
  • Displays
  • Fountains
  • Projection Screens
  • Furniture
  • Optical lenses
  • Port hold windows
  • Sight Glass
  • Scientific applications
  • Point of purchase
  • Vacuum chambers
  • And more…

Attributes

  • Outstanding optical clarity
  • Excellent UV properties
  • High impact resistance – 17x greater than glass and 4x greater than concrete
  • Superb weatherability – won’t yellow or show signs of aging
  • Structural & can be engineered to support weight
  • UVT available

Color Availbility

  • Clear
  • Standard colors stocked (thin gauge only)

Custom colors for thick cast sheets available by special order. Contact us.

Surface Finishes

  • Frosted finish
  • Gloss finish
  • Etched finish

Additional finishes available through our R-Cast Ice & Textures line.

Edge Finishes

  • Saw cut
  • Polished edge
  • Radius
  • Chamfer
  • Beveled

Fabrication Options Available

  • Forming
  • Bonding
  • Drilling
  • Various surface finishes
  • Cutting
  • Routing
  • CNC machining

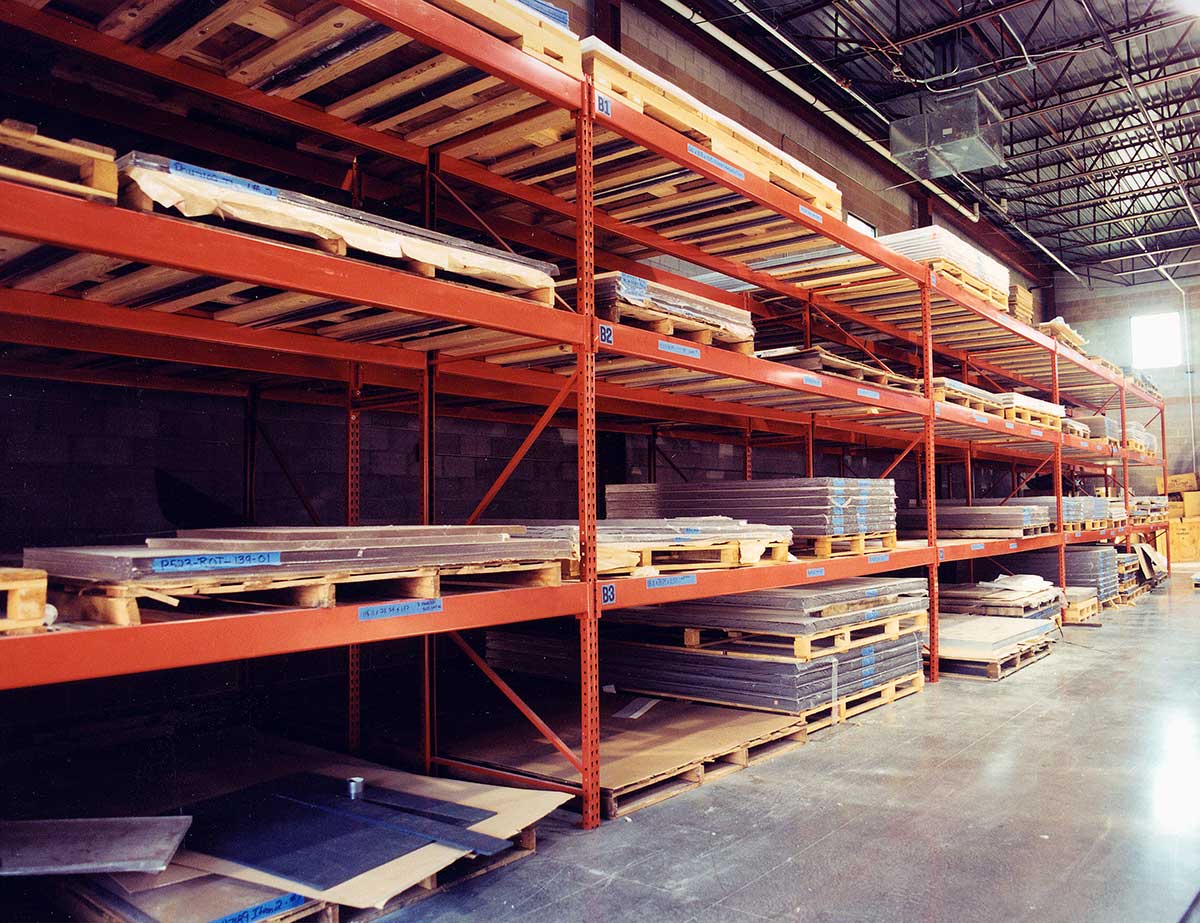

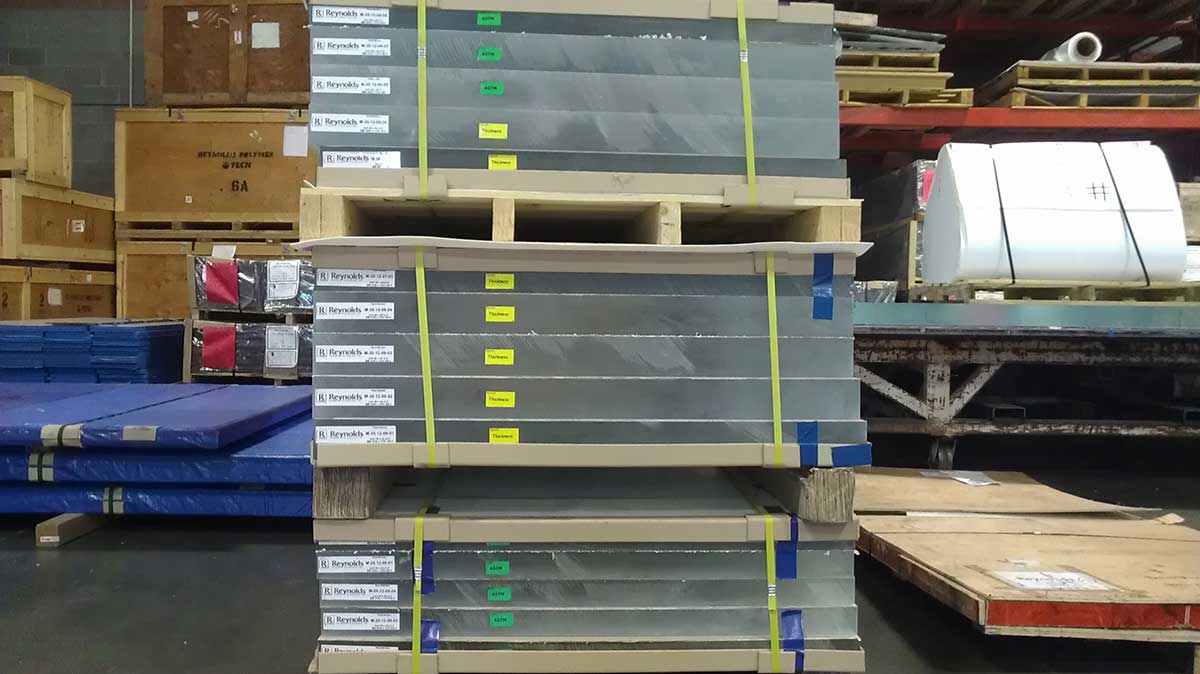

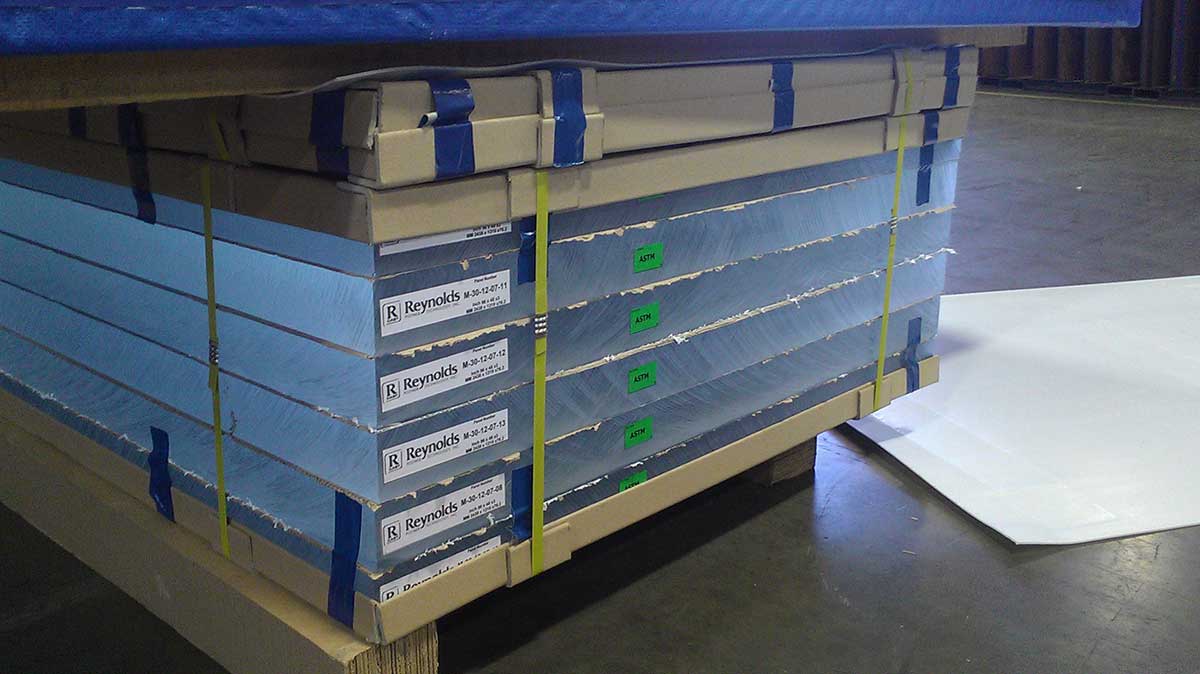

Standard Size Stock Sheet

M Panel: 48” x 96” (1.22m x 2.44m)
S Panel: 72” x 96” (1.83m x 2.44m)

Thickness Tolerance
Inches(mm)Inches(mm)

1.00(25)0.888 – 1.048(23 – 27)
1.25(32)1.156 – 1.302(29 – 33)
1.50(38)1.341 – 1.577(34 – 40)
1.75(45)1.570 – 1.842(39 – 46)
2.00(51)1.798 – 2.108(46 – 54)
2.50(64)2.319 – 2.579(59 – 66)
3.00(76)2.792 – 3.102(71 – 79)
3.50(89)3.261 – 3.621(83 – 92)
4.00(102)3.732 – 4.142(95 – 105)

Oversized Stock Sheet

P Panel: 96” x 128” (2.44m x 3.25m)
L Panel: 72” x 186” (1.83m x 4.72m)

Thickness Tolerance
Inches(mm)Inches(mm)

1.00(25)0.900 – 1.100(23 – 28)
1.25(32)1.125 – 1.375(29 – 35)
1.50(38)1.350 – 1.650(34 – 42)
1.75(45)1.575 – 1.925(40 – 49)
2.00(51)1.800 – 2.200(46 – 56)
2.50(64)2.250 – 2.750(57 – 70)
3.00(76)2.700 – 3.300(69 – 84)
3.50(89)3.150 – 3.850(80 – 98)
4.00(102)3.600 – 4.400(91 – 112)

Special order sizes are also available in:
60” x 96” (1.52m x 2.44m)
48” x 128” (1.22m x 3.25m)
72” x 120” (1.83m x 3.05m)
2” minimum thickness to special order sizes.

  • Custom gauges and sheet sizes available upon request
  • Custom colors available upon request

Contact Reynolds Polymer Technology, Inc. with any inquiries about our thick cast sheets.
